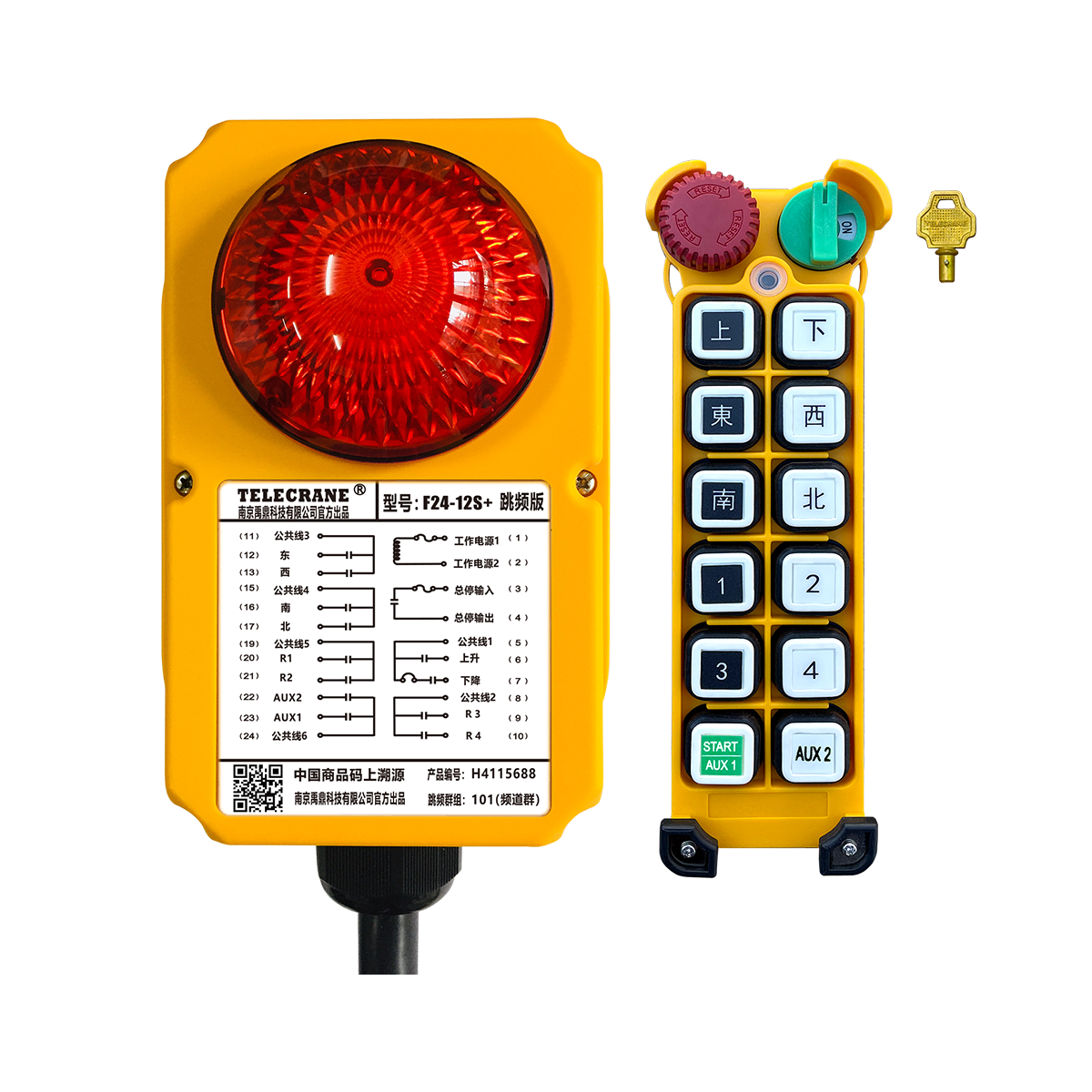

| 发射机 | Transmitter |
| 尺寸：186 x 61 x 51 毫米 | Diminsion: 186 x 61 x 51 mm |
| 重量：255克（不含电池） | Weight: 255 g (w/o batteries) |
| 电源：直流6V（4节AA电池） | Power: DC 6V (4 AA size batteries) |
| |
| 接收器 | Receiver |
| 尺寸：234*116*130毫米（含RX LED指示器） | Dimension: 234*116*130 mm (including RX LED Indicator) |
| 重量：约1240克（不含线缆） | Weight: about 1240g (without wire cable) |
| 电源：（1）24/42/230VAC，48/110/220VAC，36/220/380VAC，48/220/380VAC，110/220/380VAC 公差±20%（2）12~24VDC | Power Supply: (1)24/42/230VAC, 48/110/220VAC,36/220/380VAC, 48/220/380VAC, 110/220/380VAC tolerance ±20％ (2)12~24 VDC |
|
|
| 特征 | Features |
| 1. PLL系列（AFS自动频率选择） | 1. PLL series (AFS Auto frequency selection) |
| 2.12S：12个单步按钮（包括1个启动按钮）、1个EMS按钮和1个旋转键 | 2. 12S : 12 single step buttons, 1 start button , 1 EMS button and 1 Rotary Key |
| 3.12D：12个双步按钮（包括1个启动按钮）、1个EMS按钮和1个旋转键 | 3. 12D : 12 double step buttons , 1 start button , 1 EMS button and 1 Rotary Key |
| 4.设计非凡，所有模块/零件/电缆都固定在RX上层外壳上，而不是下层外壳 | 4. Extraordinary design, all modules/parts/cables fixing on the RX upper casing instead of lower casing |
| 5.专利接收机壳，使维护更简单、更安全 | 5. Patented Receiver Housing, makes maintenance easier and safer |
| 6.RX大型LED指示器提供关键信息，指导地面操作员 | 6. RX large size LED indicator provides crucial messages to guide the ground operator |
| 7.取放功能，先到先得的安全概念 | 7. Take & Release function, safety concept of first come and first served |
| 8.自动频率选择，最佳作体验且无干扰 | 8. Auto frequency selection, best operating experience and free from interference |
| 9.整合汉明码和CRC码技术，数据调制/解调更精确 | 9. Integrating hamming code and CRC code technology, data modulation/demodulation more accurate |
| 10.锤击距离>20，超过行业标准 | 10. Hamming distance >20 ,surpassing the industry standard |
| 11.发射器生成带有随机编码的安全随机码信号，以防止间谍复制 | 11. Transmitter generates Security Random Code signal with random coding to prevent spy copying |
| 12.创新电子卡（即插即用）设计：将所有系统数据轻松传输到备用的发射器和接收器 | 12. Innovative e-Card (plug & play)design: Easy transfer all system data to a spare transmitter & receiver |
| 13.发送器类似于电子卡复制器，可用于数据备份和传输 | 13. Transmitter acting like an e-Card duplicator, can be used for data back-up and transfer |
| 14.未重复的43亿套编号代码 | 14. Non-repeated 4.3 billion sets ID code |
| 15.低功耗发射机 | 15. Low power consumption transmitter |
| 16.温度范围：-30°C ~ +85°C | 16. Temperature range : -30°C ~ +85°C |
| 17.强大的功能设置软件（可选），便于轻松定制配置 | 17. Powerful function setting software (optional)for easy customized configuration |
| 18.材料：玻璃纤维增强塑料材料 | 18. Material : Fiberglass reinforced plastic materials |
| 19.标准配置： | 19. Standard configuration: |
| * 发射机（带保护盖）*1 | * Transmitter (with Protection cover)*1 |
| * 接收机（带线缆）*1 | * Receiver (with wire cable)*1 |
| * 用户手册* 1 | * User manual* 1 |
| * 用于接收固定的自攻螺丝 | * self-tapping screws for RX fixing |
